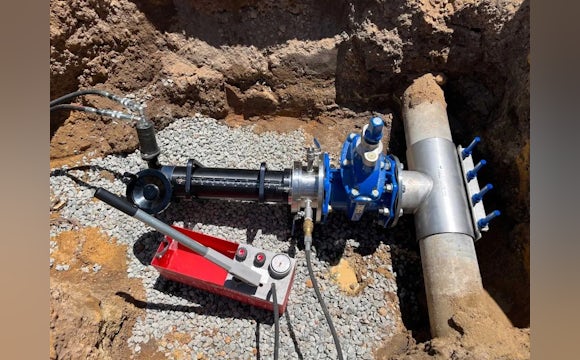

The Minitap is the world’s most compact hot tapping machine, designed by utility service contractors to provide a robust and efficient solution for live connections in confined spaces. Its patented technology ensures safe and reliable operations across various utility services, including water and gas.
Gas
Water

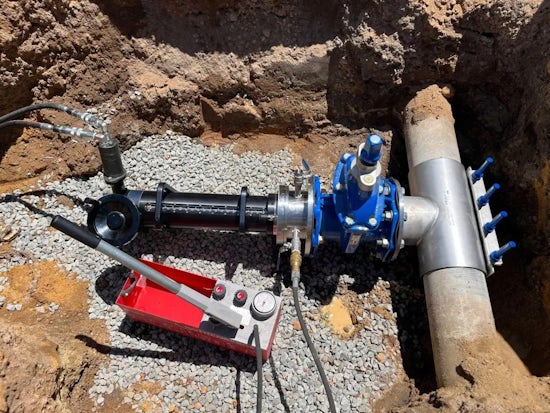

Waste waterMinitap Hot Tapping Machine
- Compact design: Operates within a 1m² workspace, ideal for areas with limited access.
- Robust construction: Fully enclosed, man-portable unit suitable for diverse field conditions.
- Safety mechanisms: Features a cam-based locking ring, secure safety pin, and adjustable hydraulic relief settings to ensure operator safety.
- Versatile compatibility: Proven performance on various pipe materials, including cast iron, ductile iron, steel, reinforced concrete, asbestos, PVC, and MDPE.
- Hydraulic operation: Utilises a standard hydraulic power pack (20 L/min output) for safe and dependable propulsion without electrical risks.
- Cutter travel: Over 400mm (16 inches) from a 600mm (24 inch) machine length.
- Operating pressure: Suitable for low-pressure systems (<1,000 Kpa/145 PSI).
- Power Source: Standard hydraulic power pack with 20 L/min output.
- Pipe material compatibility: Cast iron, ductile iron, steel, reinforced concrete, asbestos, PVC, MDPE.
Valve adaptors, cutters, and pilot drills conforming to standard dimensions, customisable to user requirements.
The World’s Most Compact Hot Tapping Machine
Minitap’s patented technology provides a portable, robust and safe hot tapping solution for large off take hot tapping in confined space environments.
Compact
Works in just 1m² of space where other machines can't fit.
Safe
Patented design minimises risk in confined spaces.
Robust
Engineered by utility contractors for real-world conditions.
The Process Make Live Tapping Easy
Minitap was designed to simplify the live tapping process. The small frame and efficient design allows for predictable operational results without the need for large excavations and costly additional connections. The main operational steps are as follows:
1
Install
Install Tapping band/ sleeve and valve on live source conduit to supplier’s specifications.
2
Valve
Attach valve adaptor to valve.
3
Test
Attach Minitap and complete pressure test.
4
Tap
Complete live tapping of conduit with Minitap.
5
Complete
Remove Minitap after closing the valve and retrieve the coupon.
