CEDEC Under Pressure Branch Connector
Cedec Connectors are installed on standard pipe collars for convenient under-pressure PE service connections for up to 16 Bar Water pressure.
Water
Energy
Waste water

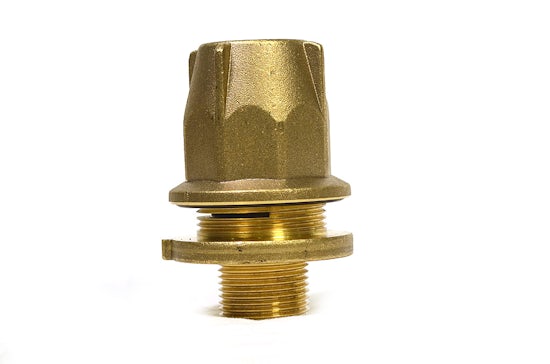

Oil and gasCedec Connector
- Tapping for 25, 32, 40 and 50mm PE pipe service
- Shutting off connections using a spatula
- Body and nut in brass
- Outer nut with a second leak-tight chamber
- Leak-tightness with universal gross joint
Torre saddles are equipped with EPDM joints certified for use with drinking water under WRAS: “Water Regulations Advisory Scheme” and under ACS: “Attestation de Conformité Sanitaire”
To carry out the under pressure connection operation, water flow is interrupted by insertion of a stainless steel spatula supplied with each Cedec Drilling Equipment.
Cedec tee system is an exclusive design that enables PE service connection pipe to be directly joined to the saddle, being fastened by means of a floating clamp, that provides highest anchoring strength with minimum assembly effort.
By loosening the nut and inserting the spatula, repair work can be carried out on the service connection network or tapping can be capped off by inserting a PE plug.
